Ring buffer function prototypes. More...

#include <errno.h>
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>

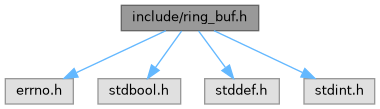

Include dependency graph for ring_buf.h:

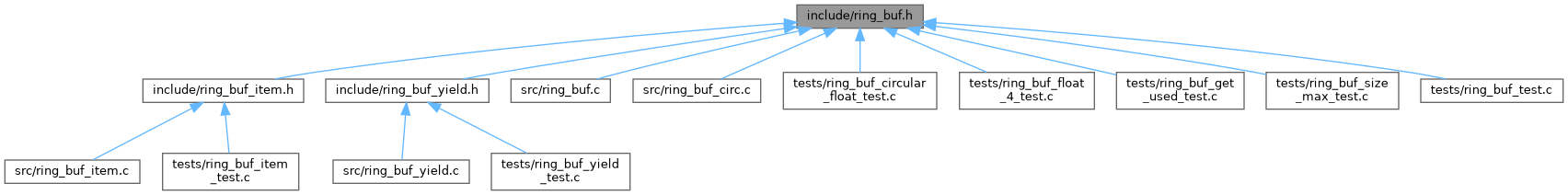

This graph shows which files directly or indirectly include this file:

Data Structures
struct	ring_buf_zone
	Ring buffer zone. More...

struct	ring_buf
	Ring buffer instance. More...

Macros
#define	EMSGSIZE 115
	Message size error code.

#define	RING_BUF_SIZE_MAX ((ring_buf_size_t)PTRDIFF_MIN)
	Maximum ring buffer size.

#define	RING_BUF_DEFINE_STATIC(_name_, _size_)
	Defines a static ring buffer.

Typedefs
typedef ptrdiff_t	ring_buf_ptrdiff_t
	Ring buffer pointer difference type.

typedef size_t	ring_buf_size_t
	Ring buffer size type.

Functions
static ring_buf_size_t	ring_buf_used_space (const struct ring_buf *buf)
	Calculates used space in the ring buffer.

static bool	ring_buf_is_empty (const struct ring_buf *buf)
	Checks if the ring buffer is empty.

static ring_buf_size_t	ring_buf_free_space (const struct ring_buf *buf)
	Calculates free space in the ring buffer.

static bool	ring_buf_is_full (const struct ring_buf *buf)
	Checks if the ring buffer is full.

void	ring_buf_reset (struct ring_buf *buf, ring_buf_ptrdiff_t base)
	Resets a ring buffer.

ring_buf_size_t	ring_buf_put_claim (struct ring_buf buf, void *space, ring_buf_size_t size)
	Claims space for putting data into a ring buffer.

int	ring_buf_put_ack (struct ring_buf *buf, ring_buf_size_t size)
	Acknowledges space claimed for putting data into a ring buffer.

ring_buf_size_t	ring_buf_get_claim (struct ring_buf buf, void *space, ring_buf_size_t size)
	Claims contiguous space for getting.

int	ring_buf_get_ack (struct ring_buf *buf, ring_buf_size_t size)
	Acknowledges space claimed for getting data from a ring buffer.

ring_buf_size_t	ring_buf_put (struct ring_buf buf, const void data, ring_buf_size_t size)
	Puts non-contiguous bytes into the ring buffer.

ring_buf_size_t	ring_buf_get (struct ring_buf buf, void data, ring_buf_size_t size)
	Gets data from a ring buffer.

int	ring_buf_put_all (struct ring_buf buf, const void data, ring_buf_size_t size)
	Puts all or none.

int	ring_buf_get_all (struct ring_buf buf, void data, ring_buf_size_t size)
	Gets all or none.

Detailed Description

Ring buffer function prototypes.

Declares ring buffer functions for putting and getting data, including contiguous and discontiguous access methods. Also includes functions for acknowledging put and get operations, as well as resetting the buffer.

Copyright: 2024, 2025, Roy Ratcliffe, Northumberland, United Kingdom

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be
included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Definition in file ring_buf.h.

Macro Definition Documentation

◆ EMSGSIZE

#define EMSGSIZE 115

Message size error code.

Error code indicating that a message is too large to fit in a ring buffer.

Definition at line 51 of file ring_buf.h.

◆ RING_BUF_SIZE_MAX

#define RING_BUF_SIZE_MAX ((ring_buf_size_t)PTRDIFF_MIN)

Maximum ring buffer size.

Defines the maximum size of the ring buffer based on the minimum value of the pointer difference type.

Definition at line 71 of file ring_buf.h.

Typedef Documentation

◆ ring_buf_ptrdiff_t

typedef ptrdiff_t ring_buf_ptrdiff_t

Ring buffer pointer difference type.

Signed type used for pointer arithmetic within the ring buffer.

Definition at line 58 of file ring_buf.h.

◆ ring_buf_size_t

typedef size_t ring_buf_size_t

Ring buffer size type.

Unsigned type used for sizes within the ring buffer.

Definition at line 64 of file ring_buf.h.
